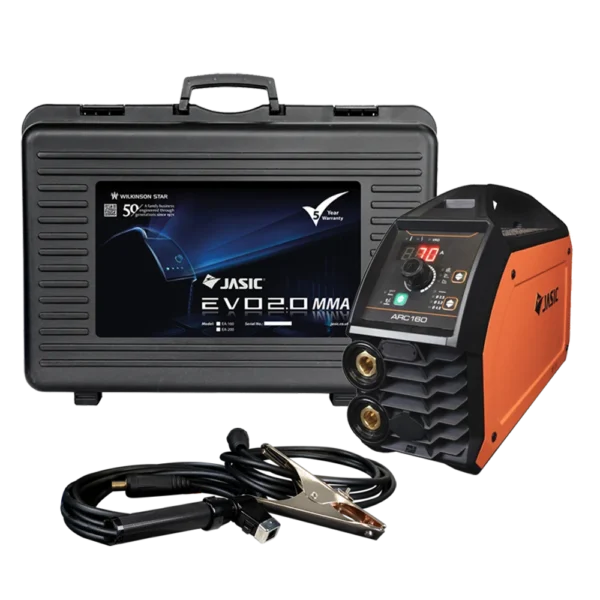

Jasic EVO Arc 160 PFC Inverter c/w Case & Leads

Description

Key Features
• Rugged, ergonomic design
• ClearVision technology
• Intelligent synergic control
• Smart Lift TIG
• Adaptable wide voltage range
• Quick factory reset
• Anti-stick, adjustable hot start and arc force
• Dedicated wireless remote control (optional)
• Remote control receiver module (optional)
• Power factor correction (PFC), generator friendly
• ABAP: Active Balancing Air Passage
• Fan on demand
• Voltage Reduction Device (VRD)
• Key power electronic component protection
• Overcurrent and overheat protection
• Complete with protective case and MMA leads
Technical Data
EA-160 ARC 160 PFC
Input voltage AC95-265V, 50/60 Hz
AC 115V AC 230V
No load voltage 78V
MMA
Rated input current 28.7A 22.6A
Ieff 14.4A 11.3A
Rated input power 3.3kVA 5kVA
Current range 20-110A 20-160A
Rated duty cycle @ 40ºC 25%
TIG
Rated input current 23.3A 14.0A
Ieff 11.7A 7A
Rated input power 2.2kVA 3.2kVA
Current range 10-120A 10-160A
Rated duty cycle @ 40ºC 25%
Efficiency 86%
Power factor 0.99
Idle state power MMA: 38.2W TIG: 7W
Protection class IP23S
Insulation class H
Dimensions LxWxH 413 x 150 x 311mm
Weight 7.2Kg
Recommended generator size 5kVA 7.5kVA
