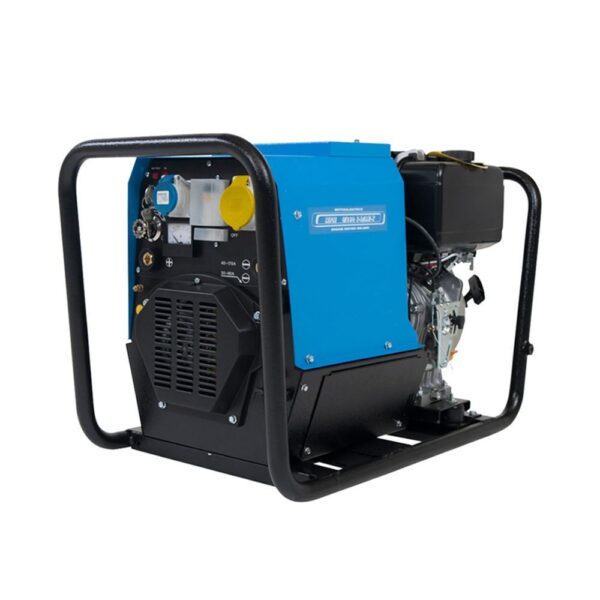

GenSet 170A Yanmar Diesel Engine Driven Welder

Description

Compact and lightweight portable engine driven

welder, equipped with a 3000 RPM Yanmar engine.

Asynchronous alternator for enhanced welding current

quality, clean and distortion-free waveform.

Just like all GenSet engine driven welders, it is

designed to be used as both a generator and welder

simultaneously, its simple and smart design allows a

practical and easy use.

• Shielded Metal Arc Welding (SMAW)
• Warning lights for: battery charger failure
• low oil pressure
• Starting battery
• Voltmeter
• 1 x 16 A 230V single phase socket
• 1 x 16 A 110V single phase socket
• Power outputs protections
• Earth leakage circuit breaker (ELCB)
• Technical Data.
• Noise Level (LWA) 99 (74dB a 7m)AC Generator 50Hz Asynchronous Single Phase Max. Power 4kVA – 230VSingle Phase Max. Power 2kVA – 110VPower Factor Cos Ф 0.8DC Welding Electronic current regulation

  Duty Cycle @ 60% 140A – 26V

  Output Range 40A – 170A

  Open Circuit Voltage 90V

  Max Welding Rod 4mm

  Yanmar Engine L100 V

  Fuel Diesel

  No. Cylinders 1

  Power 8.8HP (6.5kWm)

  Displacement 435cm3

  Cooling System Air

  Starting System Electric

  Fuel Tank Capacity 5.4l

  Fuel Consumption @ 75% 1.5l/h

  Insulation Class H

  Ambient Temperature 40ºC

  Altitude 1000m

  Degree of Protection IP23

  Dimensions (LxWxH) 950 x 480 x 574mm

  Dry Weight 148Kg
